02 - Understanding Docker

Docker vs. VMs

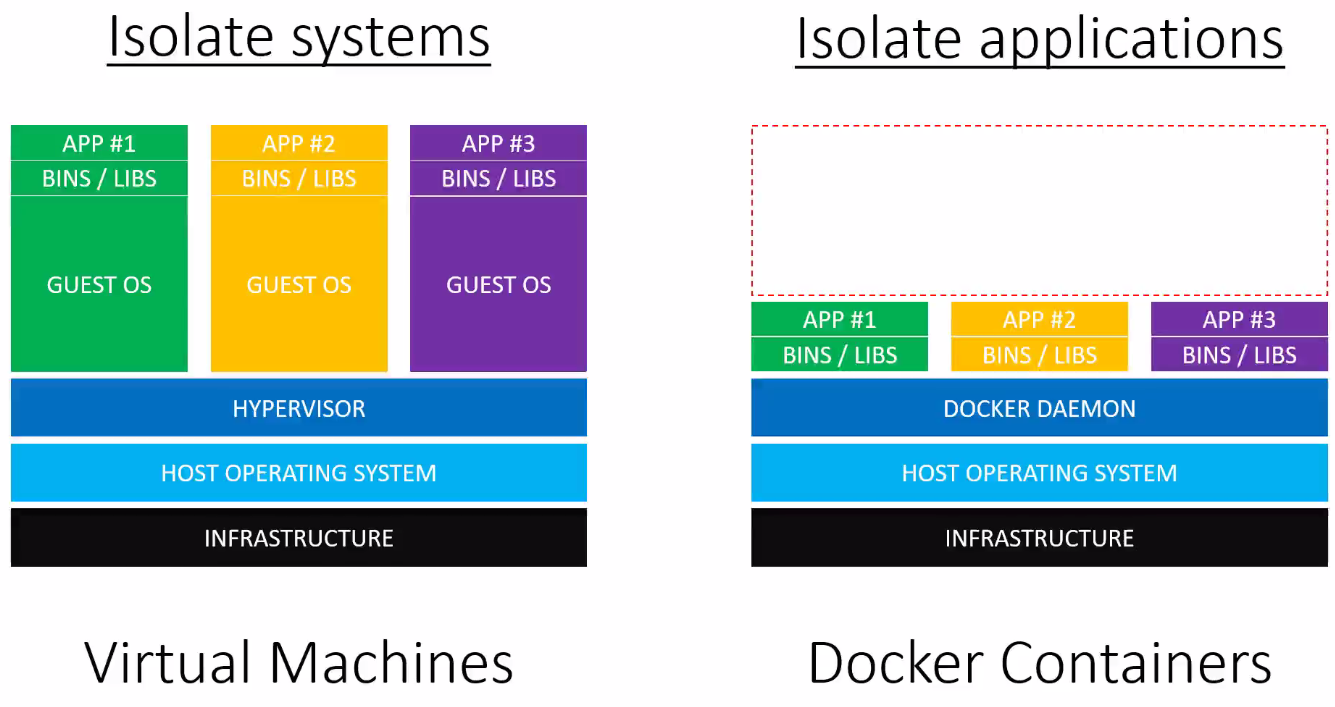

../../_images/vm_vs_docker.png
  • VMs run on a host system

  • Each VM has its own Guest OS, which are independent from other VMs running on the same host OS

  • Docker runs on a host system and controls multiple docker images via the docker daemon

  • Compared to VMs, Docker images are loaded within milliseconds (as compared to minutes for a VM), but all docker images share the same host operating system, they are interacting with

When to use VMs, when docker?

  • When each application requires different host OSs or different host OSs settings, then VMs are the choice

  • When multiple application can rely on the same OS and OS settings, then docker is the choice

  • A VM can have Docker installed, providing a different host OS, that the docker images require

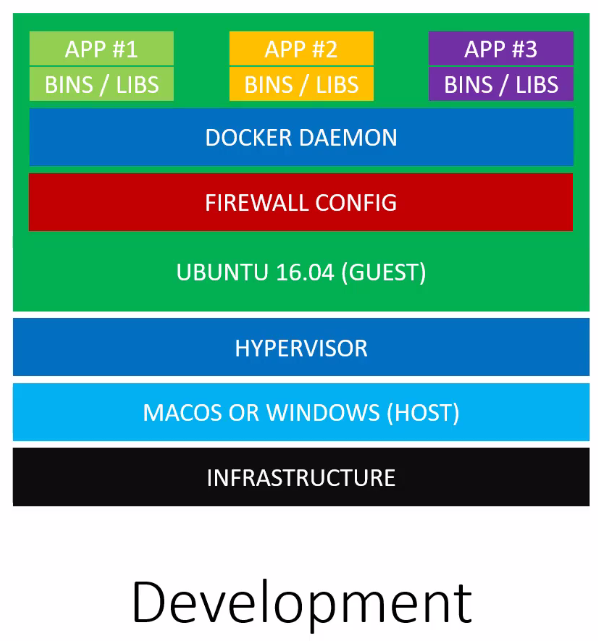

../../_images/development.png
  • Docker is suitable for running and testing process or services in isolation (e.g. each component of a web application)

  • Docker is not limited to web apps (but can be like a package manager for applications, for example applications that were not even designed to work on your OS)

-> Use VMs to run and test entire system -> Use Docker to run and test single applications

  • Docker applications can be deployed on many cloud server (e.g. AWS, Azure, DigitalOcean)

  • There, they are running on VMs, that are set up for you

  • Docker can run on almost any host OS

What does a Docker installation consist of?

  1. Docker daemon

  2. CLI (command line interface)

  • Docker daemon is a service that runs on the host OS (only runs on Linux as it depends on various Linux kernel features)

  • Docker daemon exposes a REST API. A number of tools can talk to the daemon through it, most known is the docker CLI

  • Daemon is like the server and the CLI the client

  • There are other third party clients able to interact the daemon (for various programming languages)

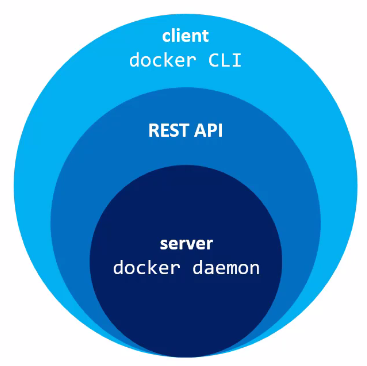

../../_images/components.png
  • The docker client is installed on your local OS (Linux, OSX, Windows)

  • The docker daemon is installed on the docker host (a Linux machine or VM)

  • The registry is a part of the docker ecosystem (explained later)

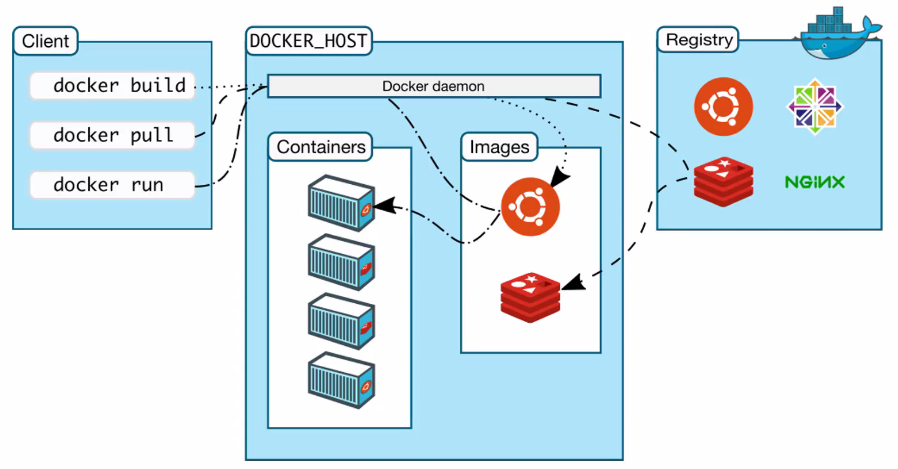

../../_images/architecture.png
