06 - Docker Compose Workshop

Adding docker compose support

  • Docker compose uses a *.yml file to define all containers settings (previously passed as arguments to the ‘docker’ CLI commands)

  • The docker compose file doesn’t have to be in the same directory as the dockerfile(s) but can reference them relatively to its own location (e.g. ./projectA)

Define docker compose API version

version: '3'

Define services (image + containers)

services:
  redis
    # redis properties here
  web:
    # web application properties here

  • services lists all available images

  • here ‘redis’ and ‘web’ will be the name of the image and the container

Inside the services:

image: 'redis:5.0-alpine'
image: 'nickjj/web:1.0' # from public docker hub

defines the docker image to be used (pulled down if not already existing)

build: '.'

defines the image is to be built (not pulled) -> location must point to the dockerfile location

  • the docker-compose.yml file does not have to be in the same directory as the docker file (but might be one level higher)

ports:
  - '5000:5000'

defines ports to be opened for this service (multiple ports are possible)

  • list entries start with a ‘-‘ (ports excepts values in form of a list)

volumes:
  - '.:/app'

defines a volume to be exposed (here the current directory ‘.’ is exposed in ‘/app’. Note that ‘.’ can be used instead of $PWD as in the docker CLI command, even on Windows)

volumes:
  - 'redis:/data'

exposes a named volume ‘redis’ inside ‘/data’

Here, the named volumed must be specified in a ‘volumes’ properties (outside ‘services’):

volumes:
  redis:  {}

The {} can accept arguments (for example read-only) -> see Docker documentation

depends_on:
  - 'redis'

tells docker, that that service depends on ‘redis’ (other service) to make sure, that ‘redis’ is launched before the services that contains this property (multiple dependencies can be added)

Adding environmental variables -> two ways

First one (explicit):

environment:
  FLASK_DEBUG: 'true'

Second one (referencing file):

env_file:
  - '.env'

is better to manage different sets of variables e.g.

env_file:
  - '.env'
  - '.env_production'

in which case, that ladder file overrides present key-values of the first file

Env files can contain compose CLI environmental variables

COMPOSE_PROJECT_NAME should always be set, otherwise the current directory name is used as project name and prefixes images and containers names with it (e.g. web2)

-> the ‘web’ image will now be named ‘<COMPOSE_PROJECT_NAME>_<services_name>:<version> so in our case web2_web:latest

PYTHONBUFFERED=true must be set to see the applications output (Python) in the terminal when running docker compose

Note

In Python there is only the PYTHONUNBUFFERED env var (see here)

Managing the application (web) with compose

Get docker compose help

docker-compose --help

  • docker-compose expects a docker-compose.yml file to be in the current directory

  • if not, the -f flag allows to specify the location a one or multiple docker-compose.yml files

Build an image

docker-compose build

  • the build image has the name ‘web2_web’

  • ‘web2’ is the name we defined in <COMPOSE_PROJECT_NAME>

  • ‘web’ is the service name defines in docker-compose.yml

Get required images for the application

docker-compose pull

-> here this downloads the redis image

Run the application (all services specified in *.yml)

docker-compose up

  • creates a default network for the application (here ‘web2_default’)

  • creates a container for dependencies docker image (here redis, so ‘web2_redis_1)

  • creates a container for web application image (here ‘web2_web_1’)

  • executes dockerfile (including entrypoint script) which launches the app

Run single service (and possible dependency services)

docker-compose up <service_name>

When running several instances of the application, those will get incrementing index numbers (e.g. web2_web_1, web2_web_2, web2_web_3) -> requires random application ports, though

Combining build + pull + up in one command:

docker-compose up --build -d

(-d makes the process run in the background)

docker-compose ps

lists all container of the current project (even stopped ones)

docker-compose logs -f

prints out recent logs from all containers associated with the docker-compose project (here: ‘web’ and ‘redis’). The -f flag defines to follow along with new logs appearing

Restart all containers

docker-compose restart

Restart particular container (service)

docker-compose restart <service_name>

e.g. docker-compose restart redis

Execute a command on a running service

docker-compose exec <service_name> <command>

e.g. docker-compose exec web ls -la

Notice, that the -it flags are not needed here (are automatically added by docker-compose)

Start a service & execute a command on it & remove that container again

docker-compose run <service_name> <command>

e.g. docker-compose run redis redis-server --version

  • this starts a new container, but doesn’t bind a port

  • container is removed after command is executed

Stop all running containers

docker-compose stop

Stop a single container

docker-compose stop <service_name>

Remove all stopped containers

docker-compose rm

Hint

Override application commands:

Add command to your docker-compose.yml service:

services:
  some_service:
    command: flask run --host=0.0.0.0 --port=5001

Here, we changed the application port 5000 -> 50001

-> a docker-compose.yml command always overrides a Dockerfile command (CMD)

Building an image + creating a tagged version of it

Add both a build and a image property to a service:

services:
  some_service:
    build: '.'
    image: 'wohletzar/some_service:1.0'

When running docker-compose build, both images are created (build version is created first, tagged one (here: wohletzar/some_service:1.0) after that).

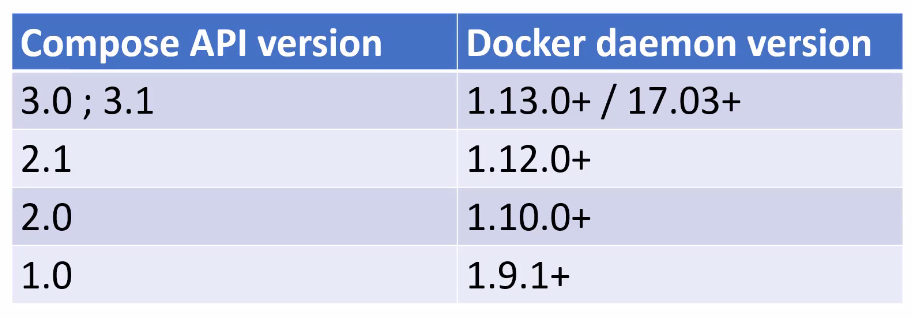

Docker Compose API v1/v2/v3

../../_images/compose_deamon_version.png

  • all versions are backwards compatible, so v2 and v3 can be chosen with the lastest docker daemon

  • v1 is legacy and should be avoided (no version property)

  • each API versions require a minimum docker daemon version

  • latest version recommended

  • Docker Compose offer regular updates independent from the docker daemon -> upgrade regularly

Managing Microservices with Docker Compose

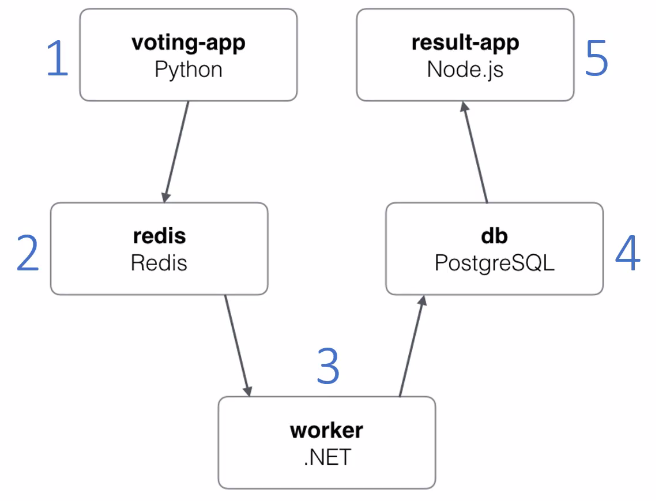

Example: Voting Web-App

../../_images/voting_app_microservices.png

  • Microservices-based architecture

  • for example, the flask app has no idea there is anything beyond redis

  • flask app can be exchanged by, for instance, Ruby on Rails, without changing any other service

A big advantage is, that you don’t have to understand the single services internals to make the application work

  1. Install the docker application from src folder (docker-compose run –build)

  2. 0.0.0.0:5000 and :5001 show proper content

Important

Changes made to the services src files are handled differently from language to language:

  • Interpreted languages (Python, HTML, …) can be changed and applied to running services without rebuilding the image. The new files are directly copied into the images when they are saved.

  • Compiled languages (C#, C++, …) require that the changed images is rebuild, since the compiled files are needed for execution

https://en.wikipedia.org/wiki/List_of_programming_languages_by_type

docker-compose.yml:

  • using back-tier and front-tier networks

  • backend services (redis, worker, db) are connected with each other via the back-tier network

  • frontend services (voting-app, result-app) are connected with each other via the front-tier network to talk to each other and also to the back-tier network to communicate with the backend services

services:
  vote:
    networks:
      - front-tier
      - back-tier

networks:
  front-tier:
  back-tier:

  • all services contain a reference to where they are located, e.g.

services:
  vote:
    build: -/vote
    volumes:
      - ./vote:/app

  • the worker service (C#) does not contain a volume, because it must be compiled. Accessing the files via a volume property does not work
